| Rope Suspended Platforms (SRP 80 AL) |
| |
 |
MULTI PURPOSE
ROPE SUSPENDED
PLATFORM |
|
 |
|
 |
| |
|
| |
| |

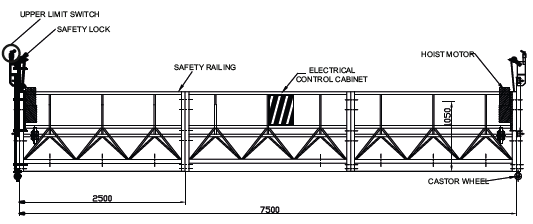

| SRP 80 |
 |
| |
| SRP 25 |
|
 |
 |
|
| |
| |

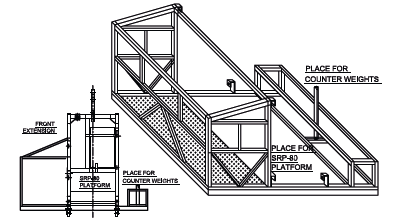

| SRP 80 WITH FRONT EXTENSION (1 MTR.) |
 |
| |

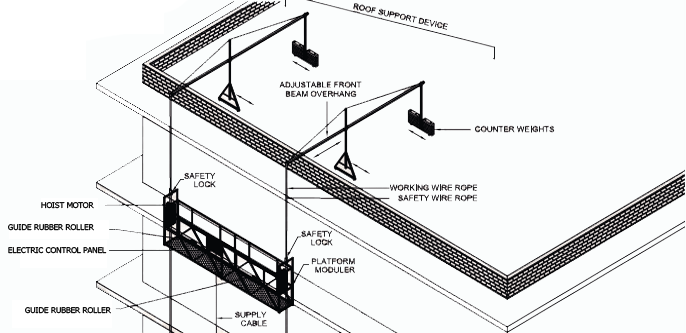

ROOF SUPPORTING
DEVICE |
WALL MOUNTING
BRACKET (OPTIONAL) |
Hoister Motor |
 |
 |
 |
|
| |
|
|
| SAFETY FEATURES |
 |
|
 |
|
 |
|
 |
|
 |
S type
sturdy design |
|
S - SSF80
Tilting type |
|
SSF50
Centrifugal type |
|
Centrifugal speed Limiter (between motor & gear box) |
|
Upper limit
switch |
|
|
|
|
|
| |
|
| |
Technical Specifications: |
| Type |
SRP 80 |
SRP 80 AL |
SRP 25 |
| Load Carrying Capacity |
800 Kgs. |
800 Kgs. |
250 Kgs. |
| Material |
Galvanised M. S. Steel |
Aluminum |
M. S. Steel structure aluminum cage |
| Lifting Speed |
8 -10 m/min |
8 -10 m/min |
9- 11 m/min |
| Rated Power |
2.2 KW X 2 nos. |
2.2 KW X 2 nos. |
1.5 KW X 1 nos. |
| Model of Hoister |
SHM 80 (”S” Type) |
SHM 80 (”S” Type) |
SHM 50 |
| Model of Safety Lock |
SSF 80 (Tilting type) |
SSF 80 (Tilting type) |
SSF 50 (Centrifugal type) |
Working Platform
(LXWXH) |
(2500 mm X 3nos.)
X 690mm X 1450 mm |
(3000 mm X 3nos.)
X 690mm X 1450 mm |
1200 mm X 650mm
X 1200mm |
| Counter Weight |
1 Ton (25 kg X 4 nos.) |
1 Ton (25 kg X 4 nos.) |
325 kg (25kgs X 13 nos.) |
| Dia of Steel Cable |
8.3 mm |
8.3 mm |
8.3 mm |
|
| |
Machines at work: |
|
| |
 |
| |
